Vividia VK-0-09510 Flexible Non-Articulation 0.95mm / 0.037" Diameter 1 Meter Long Borescope Endoscope Videoscope Inspection Camera with 5" LCD Monitor
Product details
| Management number | 211158453 | Release Date | 2026/04/04 | List Price | $3,199.60 | Model Number | 211158453 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

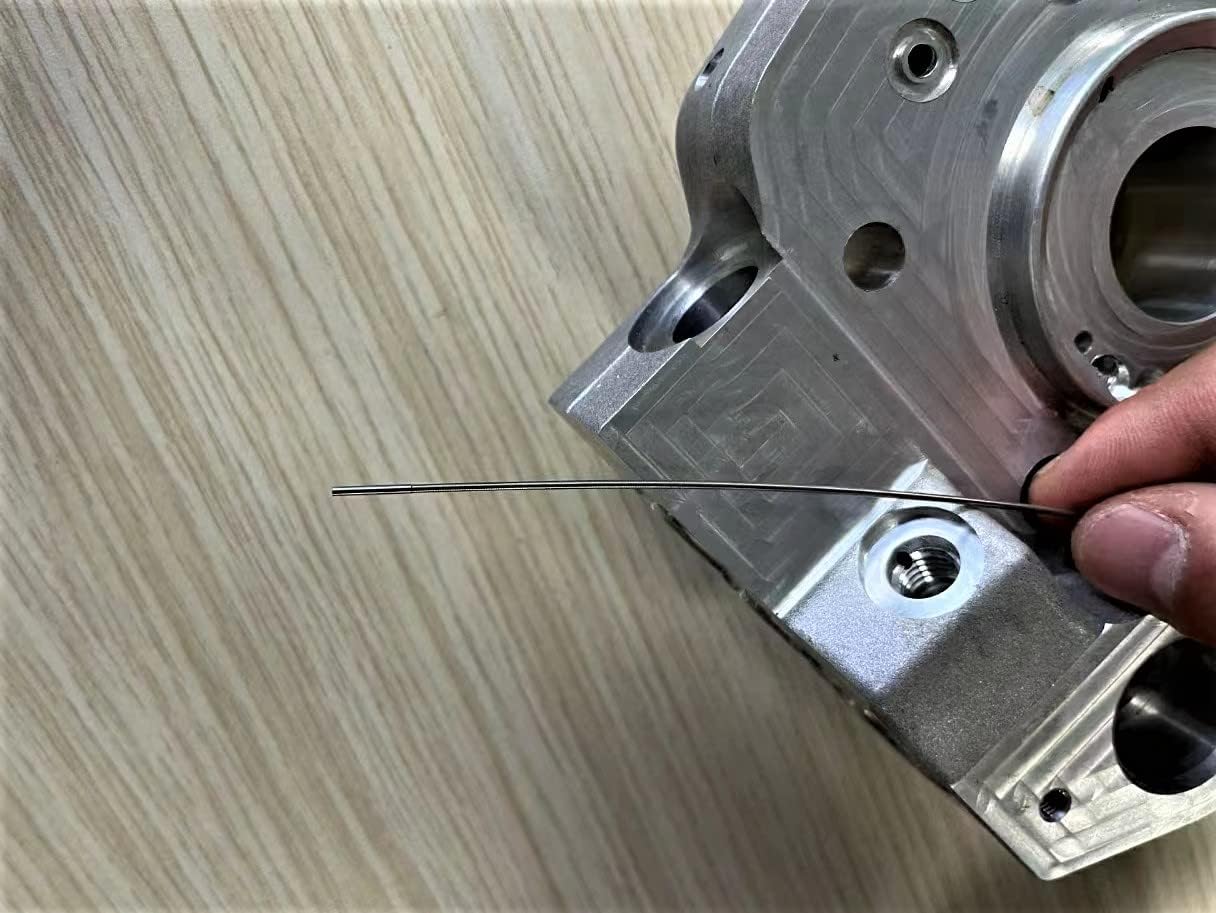

Vividia VK-0-09510 Flexible Video Borescope is a flexible non-articulation videoscope with 0.95mm / 0.037 inch diameter probe head and 1 meter / 3.3ft long probe insertion tube and front-view camera. The camera resolution is 400x400 and the LCD monitor has 5" monitor with snapping and recording functions. The photos and videos are saved on a SD card. The probe is waterproof and protected with metal braided mesh layers for wear and tear in harsh industrial environments. Vividia VK-0-09510 borescope is a good choice for applications where articulation feature is not required, but small diameter camera is very important, and close focus is required. Tech Specs: Camera head: 0.95mm x 5mm; 0.037" diameter Resolution: 400 x 400 pixels Depth of focus view: 3mm to 50mm, close-up focus View angle: 120 degree Insertion tube length: 1 meter, 3.3ft Waterproof: IP58 Monitor size: 5" LCD Monitor Input & output: USB-C Video output: HDMI Storage: SD card, max, 64G What is included: heavy duty case, VK-0-09510 borescope, power adaptor, HDMI cable, SD card 32G, lithium battery, user manual Dimension: 33.5 cm x 14.5 cm x 8.0 cm Weight: approx. 0.7 kg net / 5.9kg gross

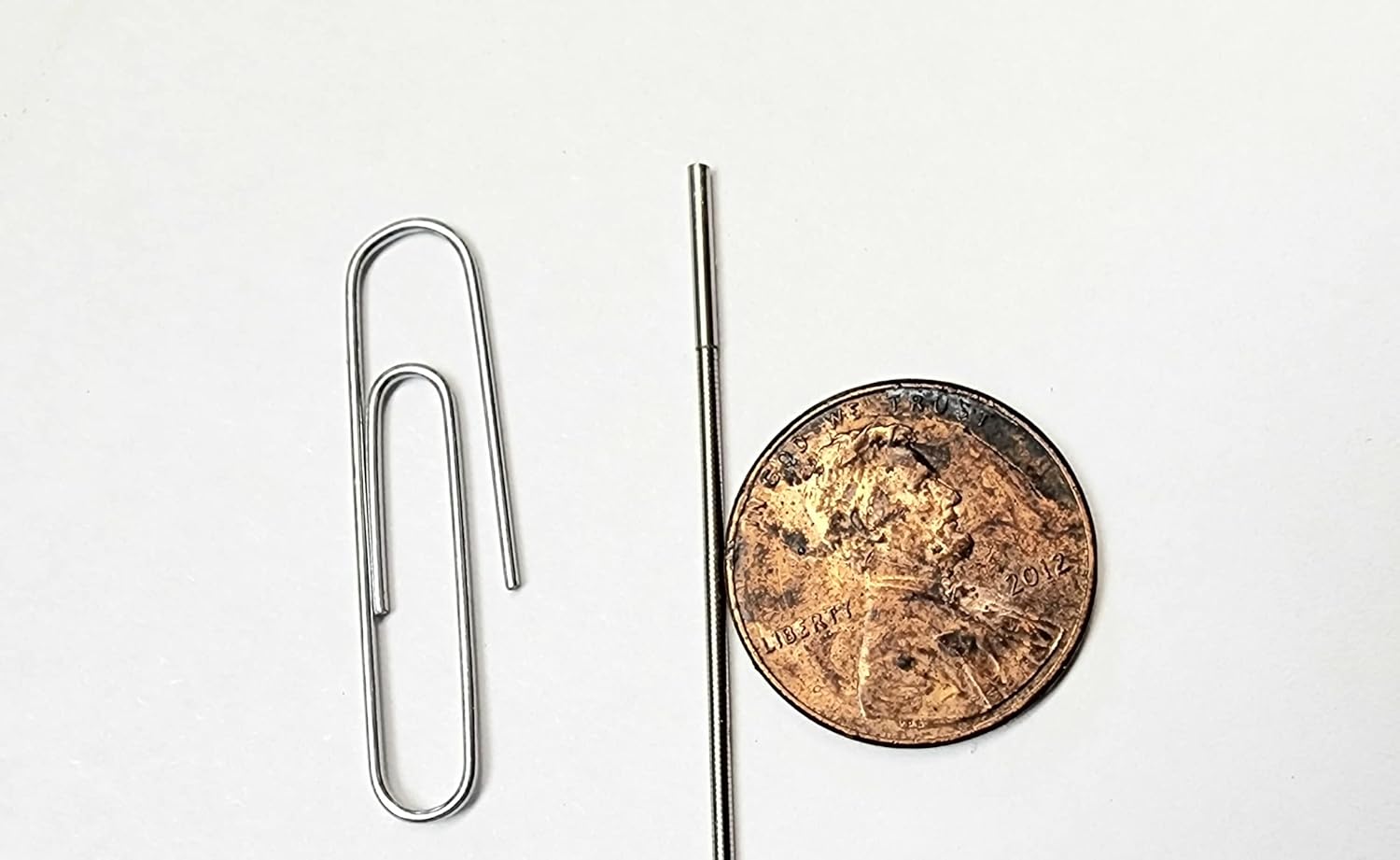

- 0.95mm / 0.037" diameter probe and working tube is 1 meter / 3.3ft long, waterproof IP58
- Resolution 400x400; Focus range, 3mm to 50mm; Close-Up focus, View angle: 120 degree
- 5" LCD monitor; Image rotation flip; Digital zoom
- Rechargeable battery and SD card to record photos and videos
- HDMI output to large display
| Zoom | Digital Zoom |
|---|---|
| Brand | VIVIDIA |
| Color | Black |
| Autofocus | No |
| Lens Type | Wide Angle |
| Focus Mode | Manual Focus (MF) |
| Focus Type | Manual Focus |
| Model Name | VK |
| Movie Mode | Yes |
| Camera Lens | The camera features a wide-angle lens with a focal length range of 3mm to 50mm and a 120-degree view angle, ideal for capturing detailed close-up images in confined spaces. |
| File Format | MP4 |
| Form Factor | Ultracompact |
| Screen Size | 5 Inches |
| Sensor Type | CMOS |
| Aspect Ratio | 1:1 |
| Battery Type | Lithium-Ion Polymer |
| Camera Flash | no flash |
| DigitalStill | Yes |
| Display Type | LCD |
| Manufacturer | Vividia Technologies |
| Model Number | VK-0-09510 |
| Optical Zoom | 1 x |
| BuiltIn Media | Camera Body & Accessories |
| Has SelfTimer | No |
| Battery Weight | 35 Grams |
| Focus Features | Manual |
| Shooting Modes | Manual |
| Audio Recording | No |
| Special Feature | 0.95mm / 0.037" diameter flexible small camera probe |
| Exposure Control | Manual |
| Has Color Screen | Yes |
| Video Resolution | 400x400 |
| Battery Cell Type | Lithium Polymer |
| Flash Memory Type | SD |
| Photo Sensor Size | 1/4-inch |
| Touch Screen Type | Capacitive |
| Compatible Devices | Computers, TVs, External Storage Devices |
| Image Capture Type | Stills & Video |
| Maximum Image Size | 400 Pixels |
| Real Angle Of View | 120 Degrees |
| Image stabilization | Digital |
| Number of Batteries | 2 Lithium Polymer batteries required. (included) |
| Wireless Technology | Wi-Fi |
| Compatible Mountings | Micro Four Thirds |
| Expanded ISO Minimum | 80 |
| Maximum Focal Length | 50 Millimeters |
| Minimum Focal Length | 3 Millimeters |
| Supported Media Type | ProductImage, EnhancedContent |
| Video Capture Format | MP4 |
| Warranty Description | 1 year manufacturer |
| Auto Focus Technology | Contrast Detection |
| Total Video Out Ports | 1 |
| Are Batteries Included | Yes |
| Total Still Resolution | 0.16 MP |
| Water Resistance Level | Water Resistant |
| Connectivity Technology | HDMI |
| Has Image Stabilization | No |
| Memory Storage Capacity | 64 GB |
| Photo Sensor Resolution | 0.16 MP |
| Focal Length Description | Wide angle 3mm to 70mm |
| Manufacturer Part Number | VK-0-09510 |
| Display Maximum Resolution | 400x400 |
| Display Resolution Maximum | 0.16 MP |
| Effective Still Resolution | 0.16 MP |
| Compatible Flash Memory Type | SD |
